PIR Clean Room Panel

SDpanel PIR clean room panel is designed to be used in temperature controlled and hygienically safe environments such as food processing facilities, frozen food, pharmaceuticals and clean rooms.

Description of PIR Clean room panel

Polyisocyanurate core is a foamed plastic with an isocyanurate ring in its molecular structure. Compared with ordinary PUR clean room panel, PIR clean room panel biggest feature is that it has good flame retardant properties and temperature resistance. In particular, its better flame retardant properties have attracted widespread attention.

Advantages of PIR Clean room panel

PIR clean room panel is compared to the PUB clean room panel, it features better thermal insulation, higher strength, as well as higher fire resistance. PIR panel is an upgrade of the PUB panel. It is widely used to make cold room walls and ceiling. The same is good for making building which need to keep warm and offer better heat proofing.

High Fire Resistance

SDpanel PIR clean room panel the refractory aging scope within 30-270 minutes or more，Flame retardant grade B1.

Better Thermal Insulation

SDpanel has innovated in the production process to effectively prevent the cold bridge effect, resulting in better insulation.

High Strength

PIR clean room panels are considerably stronger than PUR clean room panels in terms of raw material, enabling them to withstand greater loads.

SDpanel PIR clean room panel specifications

• Fire rating: B 1
• Thickness: you can choose include 50 mm, 75 mm, 100 mm, 120 mm, 150 mm , 180 mm and 200 mm
• Width: 1000 mm
• Length: could be any length, for 40HQ convenient loading will be less than 11.85m
• PIR Density: 42 kg/m 3
• Surface color steel thickness: 0.4 mm to 0.8 mm
• Color: any RAL color

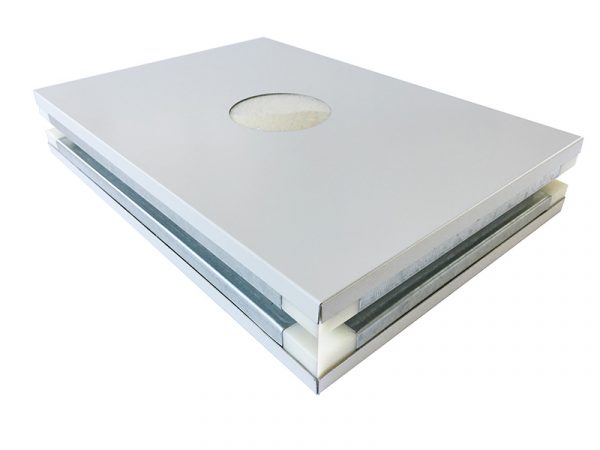

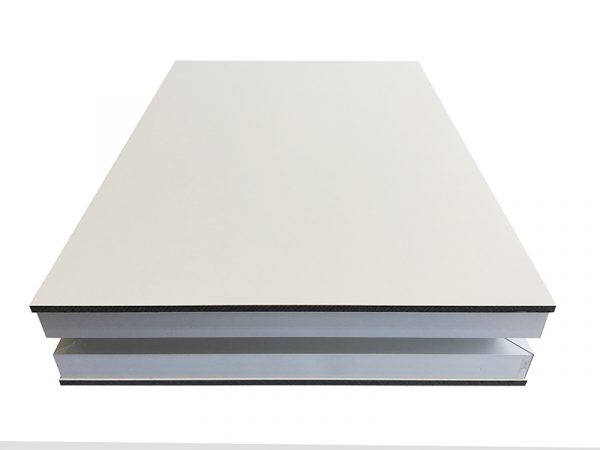

PIR Clean Room Panel Detail



Delivery of PIR Clean Room Panel
